22306 CAW33 SPHERICAL ROLLER BEARING22300

Spherical roller bearing has two columns of roller. It mainly bears radial load and also can bear axial load in any direction but can not bear pure axial load. Spherical roller bearing has high radial load capacity, suitable for working under heavy load or vibration load. The outer ring raceway of this kind of bearing is spherical shape so that it has good self aligning performance and can compensate the alignment error.

22306 CAW33 SPHERICAL ROLLER BEARING

Material

1. Material of ring :GCR15

2. Material of cage: steel,brass,polyamide,nylon

3. Material of roller: chrome steel

Structure

Internal Structure and Retainer Material Variation
C: Symmetrical roller, Stamped Steel retainer
CA: Symmetrical roller, one-piece brass cage
CTN1: Symmetrical roller, nylon cage
E: Third generation design. improved stress distribution; offer much longer service life than normal designs
Q: Bronze cage
MB: Symmetrical roller,Two-pieces brass cage
EM: Symmetrical roller, Special alloy Integral cage.

External form change

K:tapered bore bearing,taper is 1:12

K30:tapered bore bearing,taper is 1:30

N:A snap ring groove on the outer ring

W33:There are three lubrication groove and three lubrication holes in the outer ring

Clearance

C0:Norminal clearance, omitted in destination norminal clearance, omitted in destination
C2:less than norminal clearance

C3:Larger clearance than C0

C4:Larger clearance than C3

Application

1. Papermaking machinery, deceleration device, railway vehicle axle, rolling mill, roller gearbox

2.  Crusher, vibrating screen, printing machinery, woodworking machinery

3. Various industrial reducer

Operating temperature

bearings are dimensionally stable up to +200 °C. Bearings with metal cages can be used at operating temperatures from –30 °C to +200 °C.

Achtung Bearings with cages made from glass fibre reinforced polyamide are suitable up to +120 °C

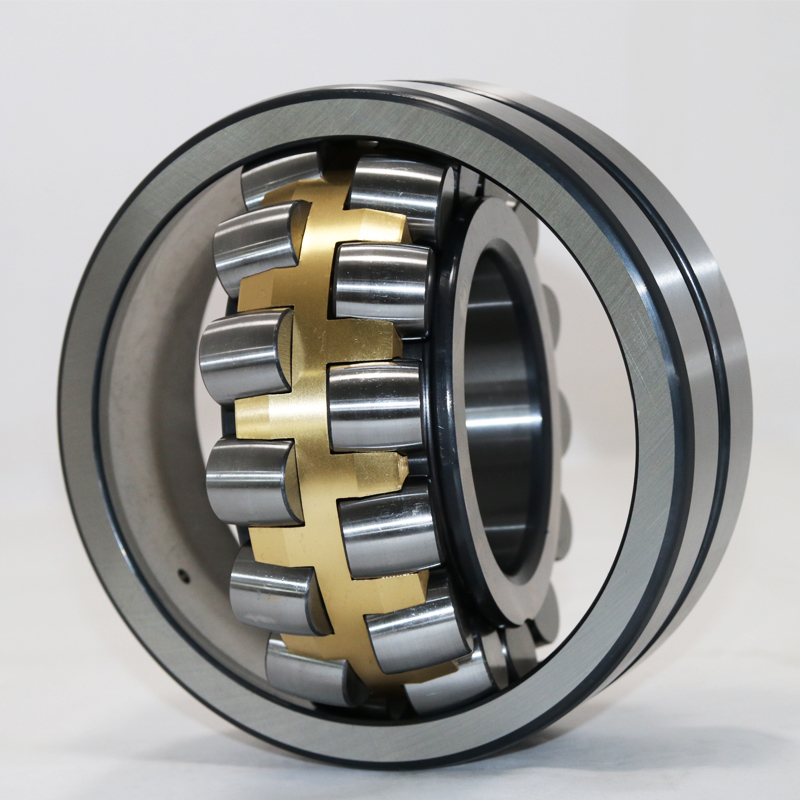

CA Design Bearings have a machined double prong-type brass cage, an inner ring with a retaining flange on both sides and a floating guide ring centred on the  inner ring .

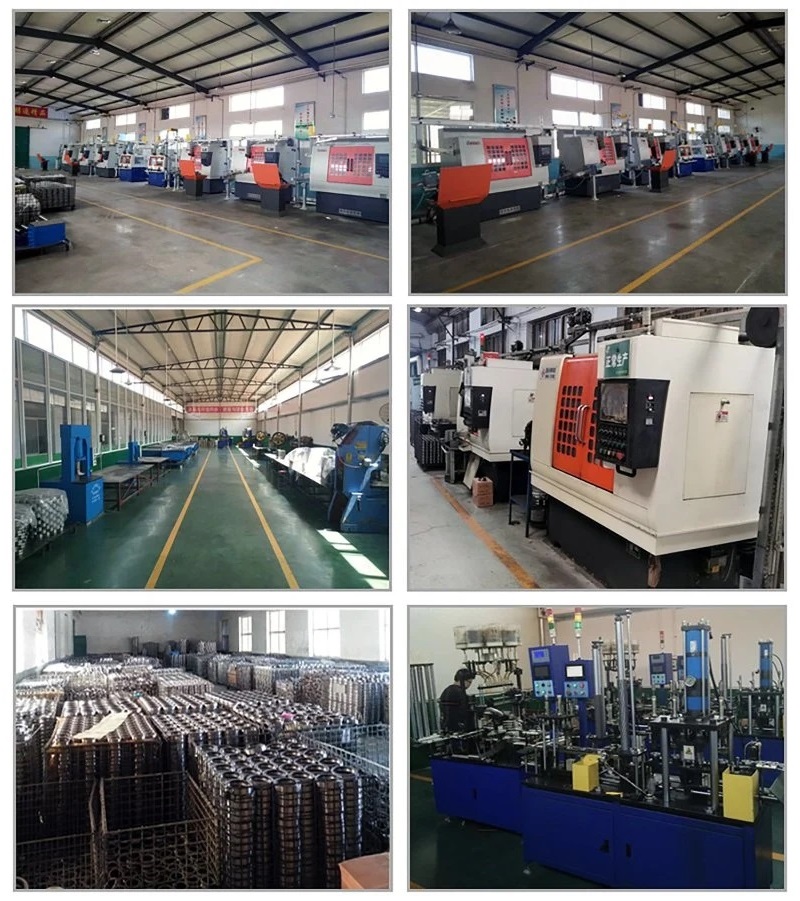

Factory and packing:
